Mega 6.0
+ 1
Mega 6.0 - Our flagship full size high power benchtop laser welder with advanced features like Gaussian Smooth Spot technology and option 3D version for an advanced visual experience.
Mega 6.0 - Our flagship full size high power benchtop laser welder with advanced features like Gaussian Smooth Spot technology and option 3D version for an advanced visual experience.
Mega 6.0 - Our flagship full size high power benchtop laser welder with advanced features like Gaussian Smooth Spot technology and option 3D version for an advanced visual experience.

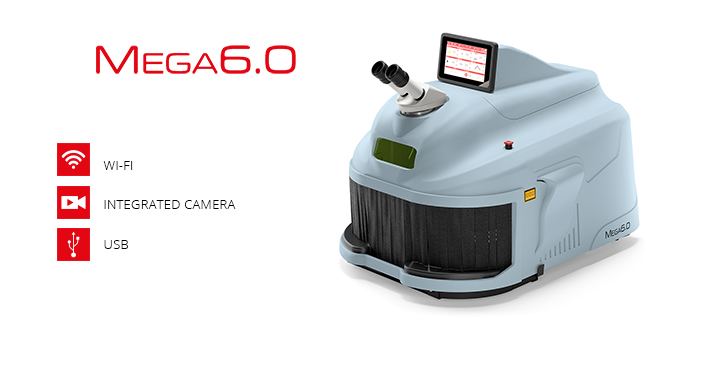

MEGA 6.0

Our flagship full size high power benchtop laser welder with advanced features like Gaussian Smooth Spot technology and option 3D version for an advanced visual experience.

The Mega 6.0 is Elettrolaser’s top of the line solution for professionals who demand flawless welds, even on challenging materials such as silver. This technological evolution is evident in its powerful laser source, dual cooling system, and Smooth Gaussian Spot technology, which ensures perfect and uniform finishes.

The top of the line Mega 6.0 was developed to meet the needs of jewelry and industrial workshops engaged in intensive work and processing of difficult materials, such as reflective metals.

The machine integrates Smooth Gaussian Spot technology, which enables a homogeneous distribution of the laser beam, improving both the aesthetic and functional quality of the weld.

This results in cleaner welds, reduced thermal deformation, and greater efficiency in distributing filler material. The dual cooling system allows continuous operation even in high-temperature environments or during extended shifts, while the 7” touchscreen and internal joystick provide intuitive and precise interaction.

The 3D version, equipped with a stereoscopic viewer, enhances the operator’s experience by reducing eye fatigue and increasing precision. Mega 6.0 is therefore a comprehensive tool, combining power and refinement, designed for those who want to take their work to the next level.

Request informations

Applications

Request informations
  • Welding of precious metals: gold, silver, platinum, palladium
  • Processing of reflective and challenging metals (such as silver)
  • Repair and restoration of antique jewelry, even with mounted gemstones
  • Sealing porosity in precision castings
  • Repair of watches, eyeglasses, bracelets, and small metal parts
  • Industrial applications on delicate or complex-shaped components
  • Precision welding with filler material

High-level performances

  • Laser Source: Nd:Ce:YAG 1064 nm

  • Touchscreen: 7” capacitive display

  • Cooling System: Water and air cooling

  • Gas Inlet: Argon

  • Power Supply: 230 V AC, 50/60 Hz (110 V available on request)

  • Type: Benchtop

  • Warranty: 36 months
Performances

Variations

MEGA 6.0
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
100 W
Peak power
11 kWp
Max energy
255J
Max frequency Hz
40
Impulse time
0,1 - 25 ms
Spot diameter
0,3 - 2,0 mm
Microspot 0,05 or 0,1 mm
optional
Spot setting
motorized
Wave programs
7 preset pulse shapes
New smsp wave form
yes
New gaussian smooth spot
yes
Microscope 10X
Leica
3D vision system
Optional
Camera on display
Yes
External control
7" Color Touch Screen
Memories cell stored
100
Hdmi
yes
Water cooling system
double / 4 l
Compressed air noozle
yes
Argon noozle
yes
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 2,2 kW
Dimensions cm
58x85x60
Weight kg
67
