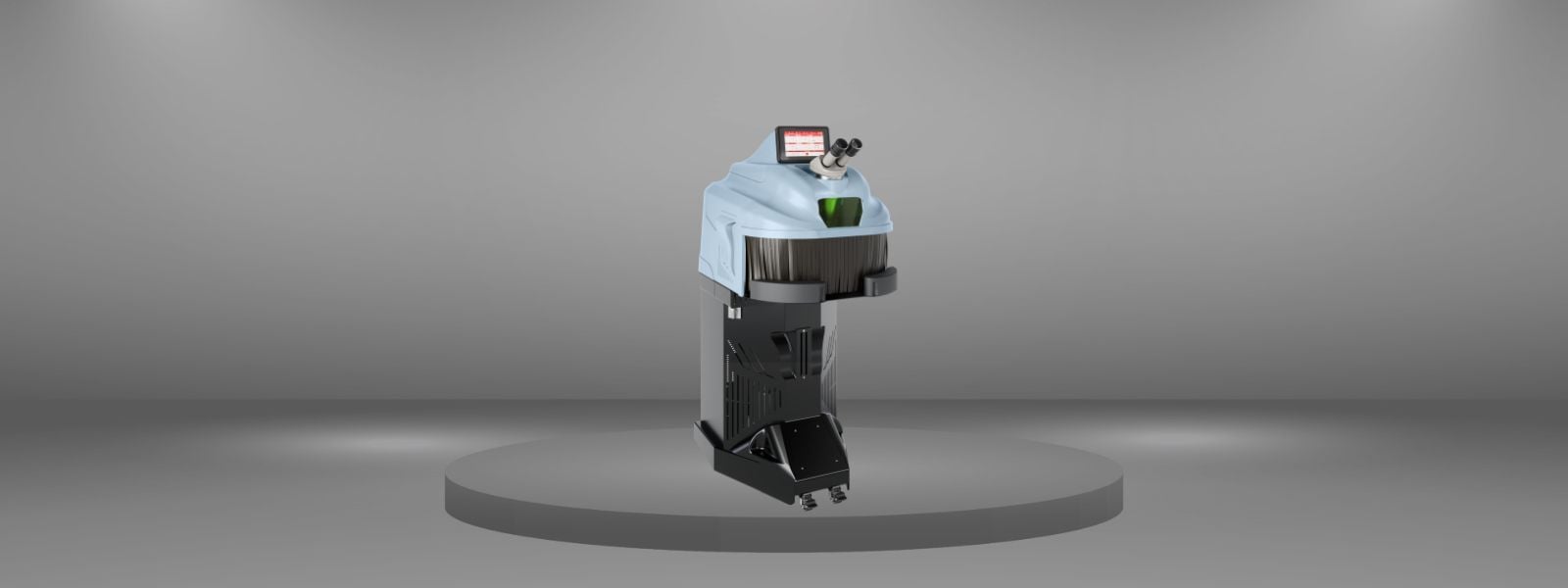

Mega 9.0

Power and precision for welding precious and reflective metals — ideal for intensive production and industrial applications.

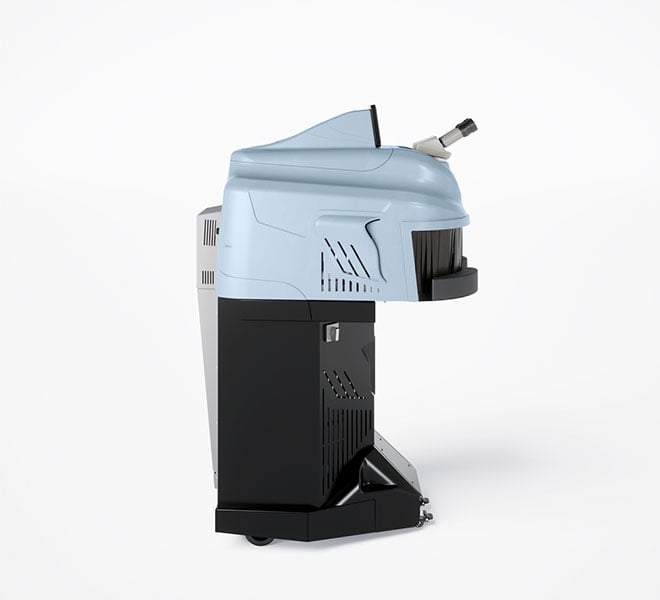

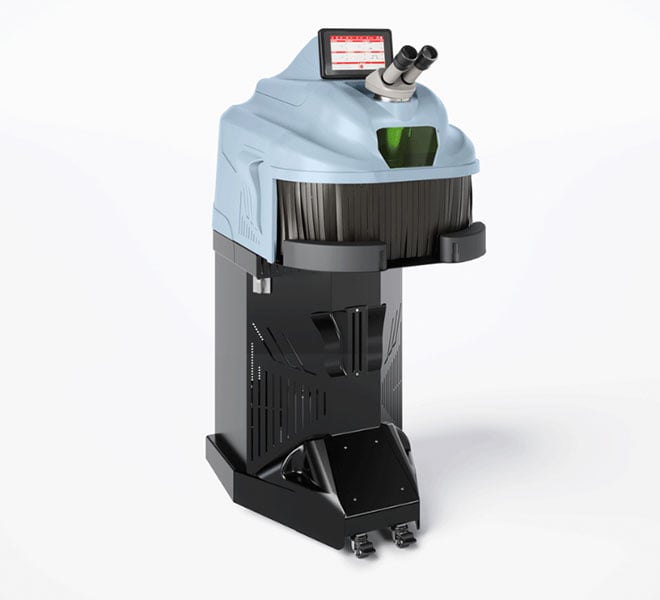

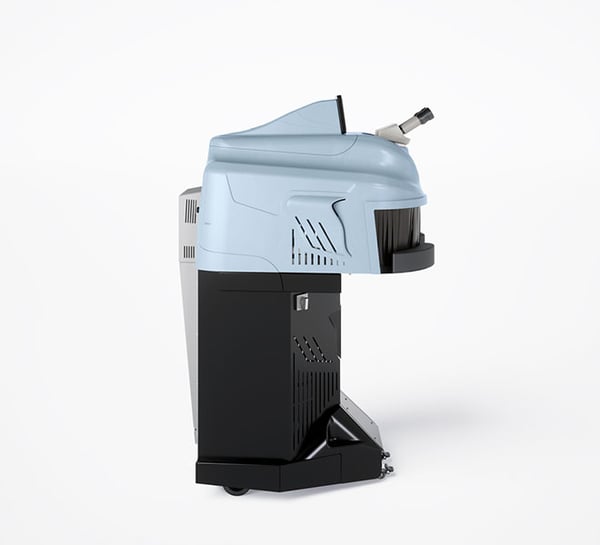

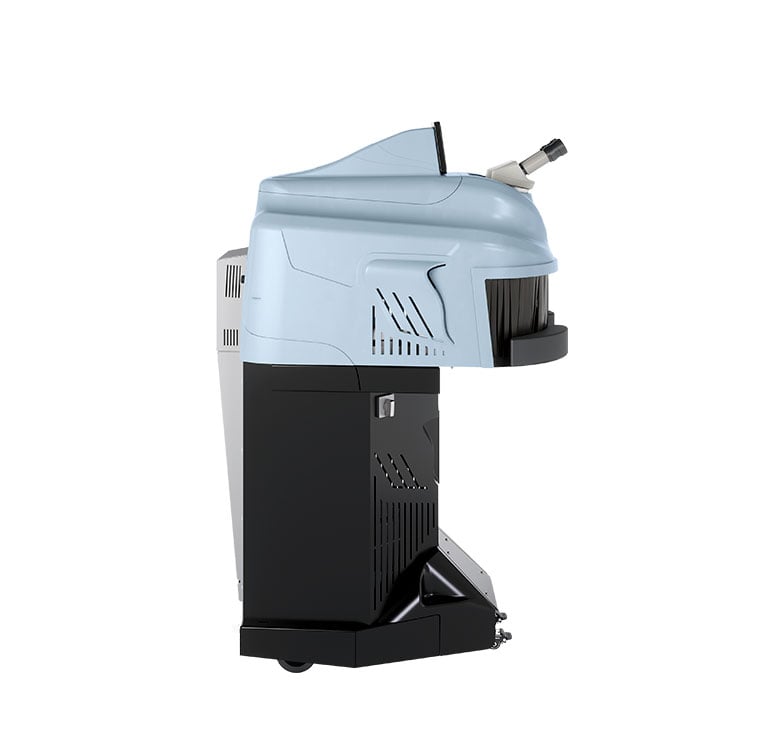

The Mega 9.0 is a laser welding system designed for high-volume production. Designed for intensive use, it features an integrated cooling system and a large welding chamber, making it perfect for industrial environments and jewelry manufacturing facilities with high production demands.

The Mega 9.0 is a laser welding machine designed for high-volume production. The supporting stand houses a generous cooling system, while the core of the machine features a dual-lamp, single-rod laser with enhanced PFC.

It delivers high peak power, stable shots at high frequencies, and high average power (150 W laser). Thanks to the innovative SMSP technology and Gaussian Smooth Spot, it ensures a uniform energy distribution on the welding area.

The large welding chamber with a lower opening allows for the processing of bulky and large-sized pieces, offering maximum flexibility in industrial environments. The 7” color touchscreen, paired with an integrated camera, allows for precise control and real-time visualization of welding operations.

Request info

Applications

  • Welding of precious metals: platinum, titanium, gold, silver, and palladium
  • Repair of watches, eyeglasses, and small metal parts
  • Welding with filler material without the need for post-weld cleaning
  • Repair of casting defects such as porosity or fractures
  • Repair of molds and industrial components
  • Welding of areas that are difficult to reach using traditional techniques

High-level performances

  • Laser Source: 2x Nd:Ce:YAG 1064 nm

  • Average Power: 150 W

  • Peak Power: 15 kWp

  • Pulse Energy: up to 300 J
Performances

Variations

MEGA 9.0
Laser source and wave lenght
2xNd:Ce: YAG 1064 nm
Average power
150 W
Peak power
15 kWp
Max energy
300J
Max frequency Hz
50
Impulse time
0,1 - 20 ms
Spot diameter
0,2 - 2,0 mm
Microspot 0,05 or 0,1 mm
optional
Spot setting
motorized
Wave programs
7 preset pulse shapes
New smsp wave form
yes
New gaussian smooth spot
yes
Microscope 10X
Leica
3D vision system
Optional
Camera on display
Yes
External control
7" Color Touch Screen
Memories cell stored
100
Hdmi
yes
Water cooling system
double - enforced / 6 l
Compressed air noozle
yes
Argon noozle
yes
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 4,4 kW
Dimensions cm
55x92,3x126,7
Weight kg
85
