Precision laser welding with motorized table and joystick control: the ideal solution for repairing small molds, assembly of medical devices and any other industrial components. Available in programmable CNC version.

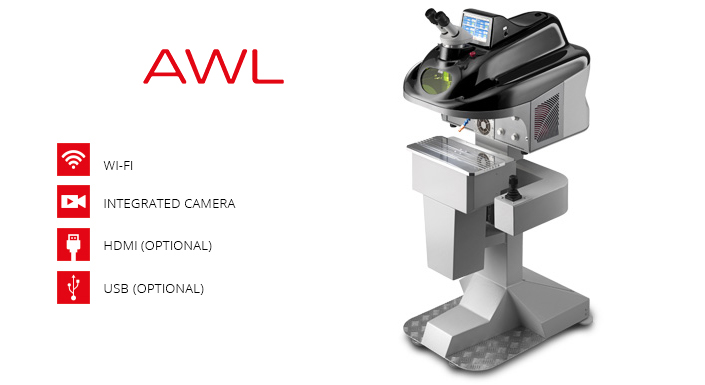

AWL is an automatic laser welder designed for repairing small molds, and precision welding of small medical and industrial components. Equipped with a motorized three-axis (X-Y-Z) table controlled via joystick, it offers precision and accuracy in welding, even in hard-to-reach areas. Available with CNC/ G-CODE programmable option and rotary axis for tubular welds.

AWL is our pedestal laser welder available with manual or CNC programmable motion - ideal for small parts weldings such as component assembly, medical devices, guidewires, battery tabs, thermocouples, small mold repair and many other micro welding applications.

The motorized three-axis table can be controlled by joystick or CNC programs. The machine features an open welding chamber which is convenient for odd shaped or long parts, and an integrated webcam displaying the operation directly on the 7" LCD screen. Wi-Fi connectivity enables remote parameter setting, while USB and HDMI connections are available as optional extras.

The CNC version with G-CODE and teach mode allows programming and automatic execution of welding paths, ideal for industrial production requiring high repeatability and accuracy. Inert gas delivery provides oxidation free welds with smooth weld beads.

Request info

Applications

  • Laser welding with integration manual or CNC programmable motion
  • Industrial component welding with high repeatability and accuracy
  • Welding of mechanical components, medical devices, thermocouples, sensors, battery tabs, and many other micro welding applications
  • Small mold repair applications
  • Programmable CNC motion for automatic of weld paths. Teach modes using G-Code
  • 3 axes motion for Linear welds or optional rotary motion for tubular welding

High-level performances

  • Laser source: Nd:Ce:YAG – 1064 nm

  • Average power: 80 W

  • Peak power: 7 kW

  • Pulse energy: up to 140 J

  • XYZ table travel: 150 x 100 x 210 mm

  • Maximum load: 35 kg

  • Table dimensions: 190 x 399 mm

  • Welding chamber: fully open
Performances

Variations

AWL
Laser source and wave lenght
Nd:Ce: YAG 1064 nm
Average power
90 W
Peak power
10 kWp
Max energy
245J
Max frequency Hz
40
Impulse time
0,1 - 25 ms
Spot diameter
0,2 - 2,0 mm
Microspot 0,05 or 0,1 mm
optional
Spot setting
motorized
Wave programs
7 preset pulse shapes
New smsp wave form
yes
Microscope 10X
Leica
3D vision system
Optional
Camera on display
Yes
External control
7" Color Touch Screen
Memories cell stored
100
Hdmi
yes
Water cooling system
double / 4 l
Compressed air noozle
yes
Argon noozle
yes
Type
desktop
Power supply
230 V AC, 50/60 Hz (110 on request) - 2,2 kW
Dimensions cm
58x85x92,3
Weight kg
95
Axis stroke
X: 11cm; Y: 8,8cm; Z: 19,5cm

Related accessories

Rotating mandrel with through hole

Rotating spindle for circular objects welding

Rotating mandrel with through hole
Covered foot pedal

Covered version foot control

Covered foot pedal
Spot size 0,05 - 0,1 mm

Micro-shot for precision welding

Spot size 0,05 - 0,1 mm
Data logger

RSS remote supervisor system - Connection of all ELETTROLASER machines equipped with Wi-Fi

Data logger
Eyepiece Cover

Removable hygienic covers for laser microscopes

Eyepiece Cover
