Spot Size Reduced to 0.05 mm: Elettrolaser Welders Become Even More Versatile

A laser welding machine enables exceptionally accurate and precise welding, safely working on delicate, valuable, or intricately shaped objects with thin profiles or embedded stones.
Using laser light allows for the rapid melting of minute amounts of metal, targeting specific sections of the object to produce aesthetically flawless welds, even on highly reflective materials like silver or aluminum.
Having access to user-friendly laser welders that allow easy adjustment of key parameters such as power, speed, and spot size is critical for achieving excellent results and providing maximum flexibility. For this reason, Elettrolaser welding machines are designed to simplify the operator's work and enable seamless customization of beam parameters to suit the specific operation at hand.


The Advantages of Spot Size Adjustment

All Elettrolaser welders allow the adjustment of the "spot" parameter, corresponding to the laser spot diameter. This setting determines the area of the object affected by the laser beam, thereby influencing energy concentration: the smaller the spot, the more concentrated the beam's energy, enabling deeper penetration and melting metal below the immediate surface.
Using an ultra-small spot size results in highly durable, deep, and precise welds that cannot be replicated with larger spot sizes. Conversely, larger diameters are ideal for treating broader, more superficial areas, making them well-suited for aesthetic fixes such as scratch repairs or surface refinements.
The ability to select from a wide range of spot diameters expands the scope of applications, enabling operators to tailor the laser beam’s characteristics to the object’s type, material, and specific requirements of the task.



spot05


Spot Diameter Reduced to 0.05 mm: Elettrolaser Optional Features

Elettrolaser welding machines offer adjustable spot diameters ranging from 0.2 mm to 2 mm. However, operators seeking even greater precision can opt for lasers with reduced spot diameters as small as 0.05 mm.
This reduced spot diameter is available as an optional feature on the Master 4.0 and Mega series welders, enabling highly skilled operators to achieve remarkable precision across a variety of tasks. This includes finely tuned adjustments to power and exposure time, crucial to prevent burning the metal alloy.

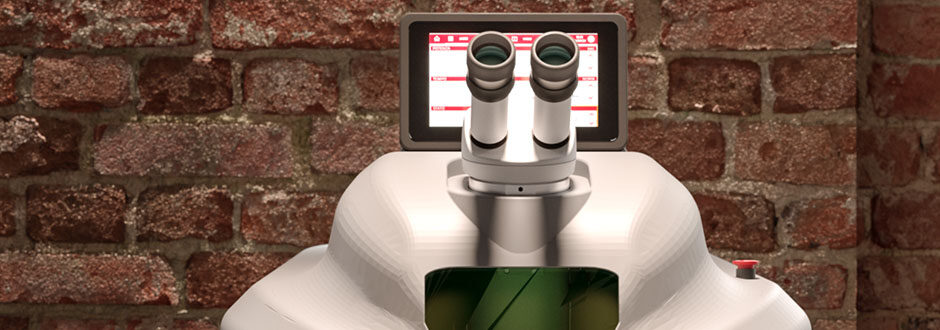

Additionally, Elettrolaser machines can be equipped with the IPM (Integrated Parameters into Microscope) system, an optional feature that displays key settings (time, power, frequency, and spot size) directly within the binocular viewfinder. This innovative system allows operators to monitor machine parameters in real-time during welding, eliminating the need to glance away at a screen. This feature reduces work time, ensures continuous process quality, and minimizes risks and errors.

Learn More About Elettrolaser Welders

Discover the features and optional upgrades that make Elettrolaser welders stand out. Visit our website  or contact our team of professionals today.
