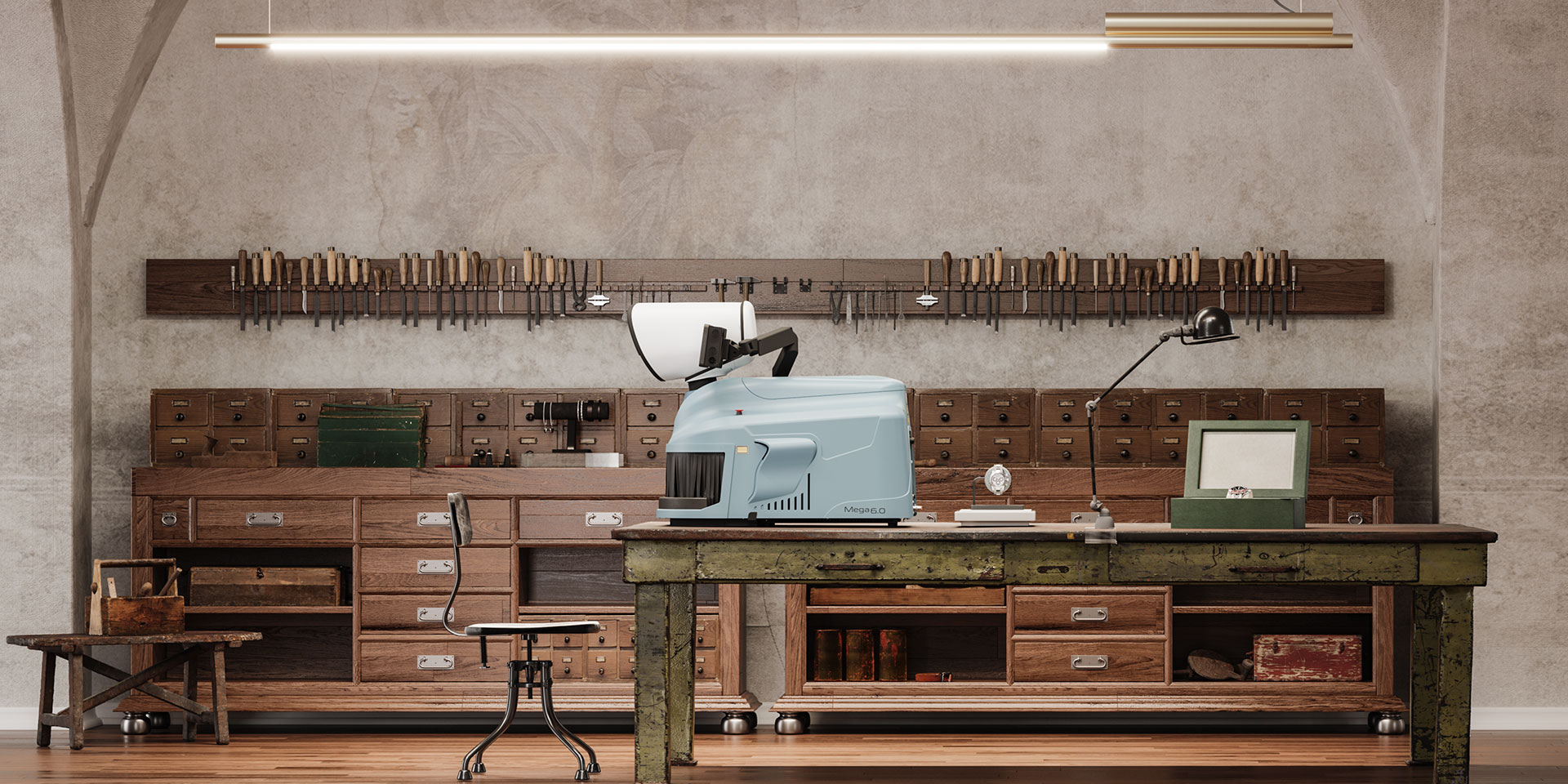

Elettrolaser is expanding the capabilities of the MEGA 5.0 and MEGA 6.0 laser welder ranges by introducing a new accessory: a 3D viewer that improves the operator’s working conditions, reducing visual fatigue and enabling more precise and safer operation.
A patented eyepiece-free 3D viewer for maximum operational precision
The stereoscopic vision system delivers three-dimensional images of exceptional quality, allowing the operator to perceive depth, volumes and geometries within the welding area with great accuracy. The ergonomic optical head of the viewer provides an immersive and realistic view, thereby supporting the extremely precise interventions carried out with MEGA series welders.
These results are further enhanced by the use of a patented technology that eliminates the need for eyepieces. Unlike a conventional viewer — in which the operator is constrained to look through the eyepieces — this 3D viewer allows users to observe the workpiece from different angles, freely following the optical path best suited to the task at hand. The ability to view the workpiece from multiple perspectives enhances the perception of its three-dimensionality and offers greater process control, which is particularly valuable when the weld to be performed is complex or the workpiece has unusual characteristics.
Natural vision for enhanced visual comfort
One of the main advantages that the Elettrolaser 3D viewer offers to the operator is the ability to observe the workpiece in a spontaneous and natural manner. The absence of eyepieces not only increases freedom of visual movement, but also ensures more comfortable and natural lighting conditions, reducing pupil contraction and dilation (which is otherwise unavoidable with conventional viewers, which shut out ambient light and illuminate the workpiece artificially). This makes it possible to significantly reduce eye strain for the operator, preventing the onset of headaches or other complaints that are particularly common during extended working sessions.
The eyepiece-free design of the 3D viewer allows the operator to work at a distance from the object and lets ambient light reach the eyes naturally, a circumstance that is particularly advantageous for operators who wear prescription or safety glasses.
Ergonomics, freedom of movement and increased concentration and productivity
The ability to maintain a correct and relaxed posture also reduces the stress placed on the neck, back and shoulders, helping to prevent musculoskeletal disorders and repetitive strain injuries, while the greater distance from the optical head improves peripheral vision, promoting natural hand-eye coordination. Performing welding operations — where consistently high levels of precision are essential — thus becomes more straightforward and immediate, and the operator is able to work under conditions of greater comfort and safety, achieving better performance in terms of both concentration and productivity.
The new 3D viewer makes the MEGA 5.0 and MEGA 6.0 series welders even more capable, improving working conditions and enabling operators to achieve ever more satisfying results, even during extended working sessions. To find out more about this accessory, contact the Elettrolaser team.
