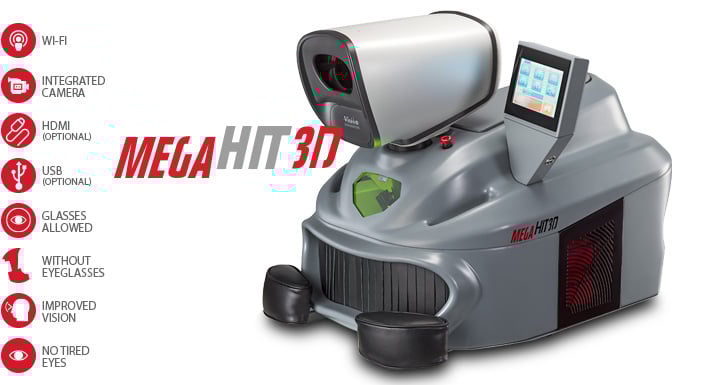

MegaHIT 3D is the optimized version of the MegaHIT welding laser with the 3D Vision stereomicroscope
The absence of the ocular in the 3D Vision system allows a wide vision of the objects to be welded at high resolution, ensuring better comfort, reducing eye stress and greater freedom of movement of the head.
In addition to the benefits for the operator's health, the production efficiency of the company is increased.
The visor installed in the laser welding machine therefore allows a series of advantages and the main ones are:
- Possibility to weld with glasses;
- Increased productivity;
- Long working shifts, reducing eye tiredness;
- Fast operator change, not having to align the eyes with the binocular;
- Stereoscopic vision of the object.
The MegaHIT 3D has the same characteristics as the standard version, such as the large welding chamber, which allows you to weld objects of larger dimensions than the standard one, and the double cooling system, which allows an intensive use even in extreme ambient conditions.
It is therefore an ideal laser welder for medium/large production, from the goldsmith sector to large industry. The 3 available powers (100 J, 120 J, 140 J) represent its versatility.
|MEGAHIT 3D 100||MEGAHIT 3D 120||MEGAHIT 3D 140||MEGAHIT 3D 230J|
|LASER SOURCE AND WAVE LENGTH||Nd: YAG 1064 nm|
|AVERAGE POWER||95 W||100 W||100 W||100 W|
|PEAK POWER||5 kW||6 kW||7 kW||9 kW|
|ENERGY||100 J||120 J||140 J||230 J|
|IMPULSE TIME||0,1 to 20 ms||25 ms|
|PULSE FREQUENCY||0,5 to 30 Hz|
|SPOT DIAMETER||0,2 to 2,0 mm|
|SPOT SETTING||Motorized, 30 positions|
|WAVE PROGRAMS||Pulse Shaping 6 preset|
|MEMORIES CELL STORED||100|
|INTERNAL CHAMBER CONTROL||Joystick|
|EXTERNAL CONTROL||7'' Color Touch Screen|
|INPUT POWER||230 V AC, 50/60 Hz|
