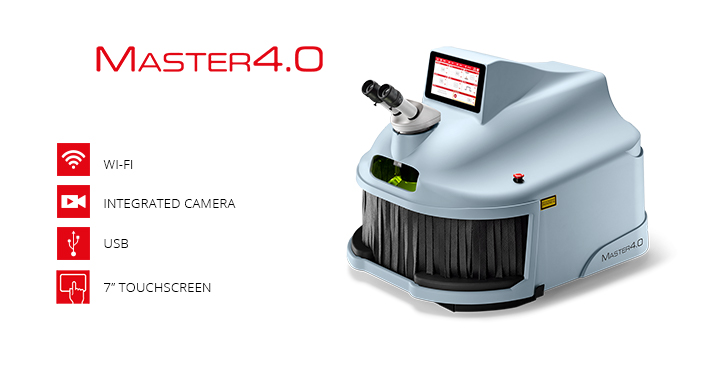

Master 4.0 is a particularly suitable laser machine for those who work with silver, but also other precious metals
Master 4.0 is a laser welding machine designed and developed mainly for goldsmiths and dental laboratories, but which is also well suited for multiple processes in different industrial sectors where maximum welding precision is required.
The new design with incorporated armrests and the latest generation reinforced body increase comfort and usability, together with the 7“ capacitive display and the joystick inside the welding chamber.
With the latest advanced updates, the Laser allows: a low use of consumables and an increase in connectivity, as well as improving the laser beam in terms of repeatability. Compact in its dimensions, it finds space everywhere, from the small shop to the small / medium business that needs to optimize space.
MASTER 4.0 | |
LASER SOURCE AND WAVE LENGTH | Nd:Ce: YAG 1064 nm |
AVERAGE POWER | 80 W |
PEAK POWER | 9 kW |
ENERGY | 225 J |
IMPULSE TIME | 0,1 ÷ 25 ms |
PULSE FREQUENCY | 0,5 ÷ 30 Hz |
SPOT DIAMETER | 0,2 ÷ 2,0 mm (0.1 opt.) |
SPOT SETTING | Motorized |
WAVE PROGRAMS | Pulse Shaping 6 preset |
MEMORIES CELL STORED | 100 |
INTERNAL CHAMBER CONTROL | Joystick |
EXTERNAL CONTROL | 7'' Color Touch Screen |
POWER SUPPLY | 230 V AC, 50/60 Hz (110 on request) - 2,2 kW |
TYPE | Desktop |
ARGON NOZZLE | Yes |
