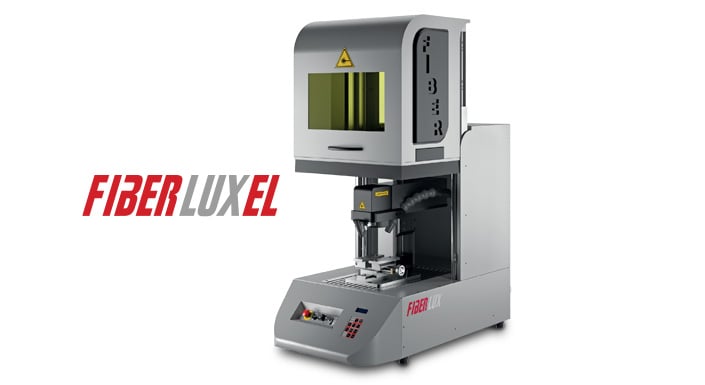

Engravings, excavations and laser cuts at a truly competitive price, with FiberLUX EL
Engraving and laser cutting on metals represents advantages in terms of speed, precision and accuracy of execution. This type of marking has spread to many sectors, from the mechanical industry, electronics to the jewelery and silver industry, and so on.
With the FiberLUX EL series, Elettrolaser responds to a growing demand, providing an ideal machine for the shops and small/medium productions.
The EL line integrated import all the advanced features of the FiberLUX, as well as the closing chamber, the motorized Z-axis and the possibility to install the drag-clamp system for multiple cutting jobs. In the meantime, the machine using and the software are simply and easy for any users.
APPLICATIONS |
It allows to engrave objects of any metal (gold, silver, steel etc.), in particular logos, brands, photo-engraving, texts, graphic designs and, using the high precision rotary axis system, the inside and the outside of rings (this one provided as an accessory). With a maximum marking area of 160x160 mm and with resolutions up to 20 μm.
POWERS AND MAIN FEATURES | ||
20 W | 30 W | 50 W |
It is equipped with the innovative "user-friendly" focusing system with overlapping pointers, through the manual adjustment of the "Z" axis, and can be supplied with a camera for the working area, this for an optimization of the processing or for any remote assistance.
FiberLUX EL is supplied complete with SOFTWARE, easy and intuitive, capable of importing files from the most well-known computer-design programs currently in existence (svg, dxf, bmp, plt, jpg, dwg, etc.).
Also available in the SPECIAL VERSION for trademarks with which it is possible to affix the title based on the new reference protocol for the laser marking of precious metals and proceed to electronic punching through a simple USB token.
OPTIONAL AVAILABLE |
- X & Y clamp, for fixing and positioning the pieces;
- Rotary axis system (for engraving inside and outside the rings and more);
- Internal camera;
- Automatic drag & clam (for production in series);
- Dust aspirator, to optimize the cleaning of the machine and the work area (available in 2 models, one ideal for small production and one ideal for intensive production);
WHY CHOOSING THE FIBERLUX EL |
The EL series is the right compromise between the NANO and the PRO line but compared to the NANO it is a more performing product thanks to the autofocus at a really competitive price. Ideal for both small and medium production.
FIBERLUX EL 20 | FIBERLUX EL 30 | FIBERLUX EL 50 | |
OUTPUT POWER | 20 W | 30 W | 50 W |
WAVE LENGHT | 1064 nm | ||
M2 | < 1,8 | ||
POWER SUPPLY | 230 V 50/60 Hz (opt. 110 on request) - 1 kW | ||
WORKING SPACE DIMENSION (LXDXH) | 250x250x350 mm | ||
WEIGHT | 55 kg | 55 kg | 55 kg |
FOCAL 100: MARKING AREA / SPOT | 60x60 mm / 16 um | ||
FOCAL 160: MARKING AREA / SPOT | 110x110 / 26 um | ||
SPEED OF GALVO HEAD | 5000 mm/s | 5000 mm/s | 7000 mm/s |
MAX PULSE ENERGY | up to 1 mJ | ||
MAX FREQUENCY | 60 kHz | 60 kHz | 100 kHz |
COOLING SYSTEM | air cooled | ||
PULSE DURATION | 100 ns at 20 kHz | 100 ns at 20 kHz | 120 ns at 20 kHz |
LASER CLASS/MACHINE CLASS | IV / I (no for lite version) | ||
LITE VERSION AVAILABLE | Yes |
